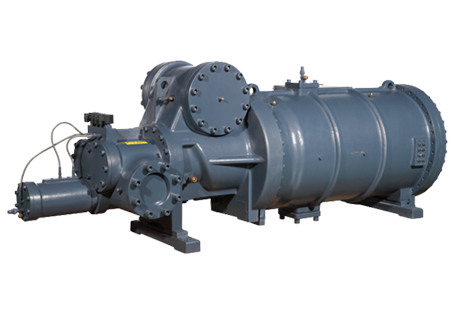

High voltage series compressor

Product Information

Click here for more information


Features
Model Specification

High efficiency 5:6 asymmetric rotor profile;



Unique design of solenoid valve oil circuit energy regulation structure; customers can choose step or stepless energy regulation according to the design.





Evaporation temperature ranges from 15°C to 40°C; Max condensation temperature can reach 70°C.



The return air interface of the economizer is the standard configuration of the screw compressor. The design of floating medium pressure (return gas pressure of economizer) enables the compressor to use the economizer no matter its under full load or part load, so as to avoid the backflow gas of the economizer and the cross flow of the low pressure side, which improves the operation efficiency under part load.





Special independent motor cooling structure design to improve compressor performance



Refrigerant: R22, R134a, R404A, r507a, R407C and other refrigerant





Motor coil temperature sensor (PTC, NTC or PT100 or PT1000); Exhaust temperature sensor (PTC); Protection module INT69 (high voltage standard configuration).



Exhaust line muffler and economizer line muffler.





Accessories: oil circuit sight glass, oil circuit solenoid valve, manual reset differential pressure switch, oil flow switch, oil filter, pressure maintaining valve, etc.


Catalogue & Technical Manual

Name

Release Time

Download

Drawing

Name

Release Time

Download
