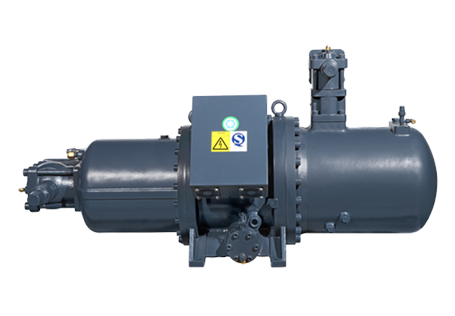

Hanbell RC2-E semi-hermetic screw refrigeration compressor is designed for R134a refrigerant water cooling condition, mainly used in water-cooled low condensation temperature conditions, with the best cost performance.
Product Information
Click here for more information
The displacement of RC2-E series compressor ranges from 300m3/ h to 1539m3/ h. There are 17 types, which can meet the needs of different displacement.
The motor of RC2 series compressors ensures that the compressor can achieve extremely high operating efficiency under any load within its operating range
The motor housing of RC2-E series compressor is specially designed to adapt to the operation of R134a refrigerant under water cooling condition.
The latest design of the compressor motor is the most suitable motor designed according to R134a refrigerant operating conditions. The low loss silicon steel core and motor cooling channel design can meet the low condensation conditions such as water cooling.
According to R134a refrigerant characteristics and water cooling conditions, the bearing of RC2-E compressor is re-optimized.
RC2-E standard new INT69 HBY Diagnose protection module with the functions of reverse phase, lack of equal protection, and a fault indicator to indicate the type of fault
The lubricating oil forRC2-E is HBR-B08. If customers have special oil requirements, please contact Hanbell.
Model | RC2- 300E | RC2- 340E | RC2- 370E | RC2- 410E | RC2- 470E | RC2- 510E | RC2- 550E | RC2- 580E | RC2- 620E | RC2- 710E | RC2- 790E | RC2- 830E | RC2- 930E | ||||
Compressor | Discharge volume(50Hz) | m3/h | 293 | 339 | 366 | 407 | 471 | 508 | 549 | 583 | 619 | 713 | 791 | 825 | 929 | ||
Rotation (50Hz) | Rpm | 2950 | |||||||||||||||
Capacity control | Step | % | 25,50,75,100 | ||||||||||||||
Stepless | % | 25~100 | |||||||||||||||
Motor | Type | -- | 3 phase 2 pole squirrel cage induction motor | ||||||||||||||
Start model | -- | Y-△ | |||||||||||||||
Voltage（50Hz) | -- | 380 | |||||||||||||||
Insulation level | -- | Level F | |||||||||||||||
Protection module | -- | PTC | |||||||||||||||
Fuel quantity | L | 16 | 16 | 16 | 15 | 18 | 20 | 23 | 20 | 23 | 23 | 28 | 28 | 28 | |||
Oil heater | W | 300 | |||||||||||||||
Strength test (air pressure) | Bar | 35 | |||||||||||||||
